Optimizing Sample Geometry for Precise Dielectric Analysis

The physical geometry of a dielectric sample directly dictates the accuracy, stability, and repeatability of impedance spectroscopy measurements. While Eynocs impedance analyzers feature wide dynamic ranges, operating near the instruments’ optimal sensitivity thresholds yields higher resolution, lower measurement noise, and repeatable results.

Selecting the optimal sample geometry requires balancing dielectric constant ( $\varepsilon’$ ), sample thickness ( $d$ ), electrode surface area ( $A$ ), and material conductivity ( $\sigma$ ).

1. Target Capacitance Ranges for Dielectrics

For standard parallel-plate sample cells measuring low-loss dielectric materials:

Optimal Range: Aim for a target sample capacitance between 50 pF and 200 pF (ideal target: ~100 pF), particularly for high-frequency sweeps between 100 kHz and 100 MHz.
Low-Frequency Range: Capacitances up to 1 nF yield reliable results at lower frequencies.
Capacitances Below 50 pF: Require strict Open calibration and rigid electrode placement due to the outsized impact of parasitic stray capacitance.

2. Sample Geometry for Conductive Materials

Materials with significant electrical conductivity require the opposite design approach to prevent low-impedance saturation of internal measurement ranges:

Target Resistance: Target an overall sample resistance of approximately 1 kΩ.
Geometric Adjustment: Use a thicker sample with a smaller diameter/surface area. Increasing thickness (d) increases resistance (R), while decreasing area (A) further raises impedance into a highly accurate operating region.

3. Pre-Measurement Geometry Calculation in UniLab

Rather than preparing samples blindly, use UniLab’s built-in tools to project expected measurement conditions:

Air\space Capacitance\space (C_0) = \frac{\varepsilon_0 \cdot A}{d}

Open the Sample Properties window in UniLab.
Input prospective sample diameter and thickness.
Review the calculated theoretical air capacitance C₀. Adjust dimensions until C₀ produces an estimated sample capacitance near ~100 pF once relative permittivity εᵣ is accounted for.

Sample Type	Primary Electrical Metric	Recommended Geometry Modification
Standard Insulator / Dielectric	$50\text{ pF} \le C_s \le 200\text{ pF}$	Adjust surface area (A) and thickness (d) for ~100 pF baseline
Conductive / Ionic Medium	$R_s \approx 1\text{ k}\Omega$	Increase sample thickness (d), decrease electrode surface area (A)
Low-Permittivity / Small Volume	$C_s < 50\text{ pF}$	Maintain rigid fixed spacing; rely heavily on Open calibration

5. Sample Flatness, Contact Interfaces, and Electrode Cleaning

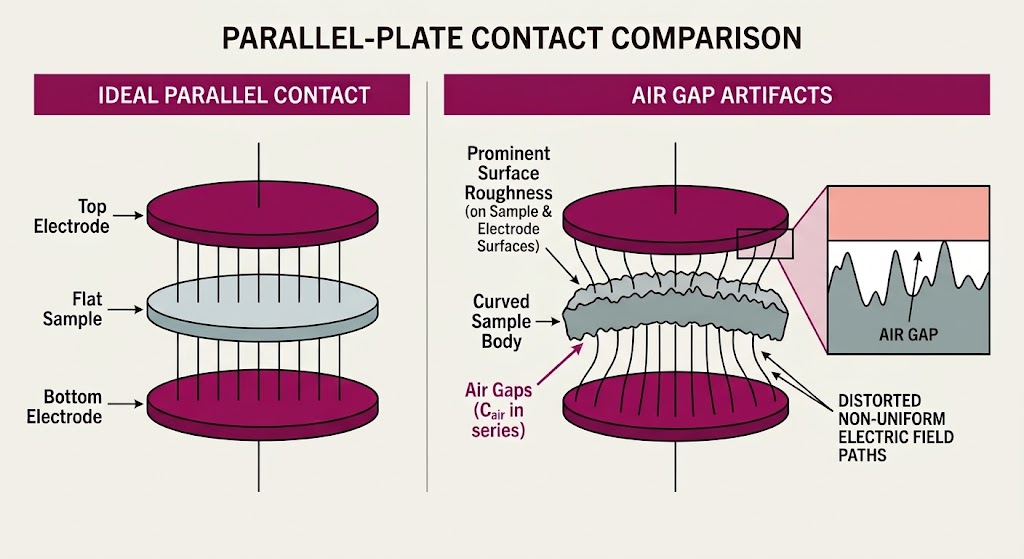

Uniform contact across parallel-plate electrodes is necessary to maintain a homogeneous electric field distribution. Air gaps caused by surface roughness, curvature, or parallelism errors act as series capacitors, lowering the effective measured dielectric constant ( $\varepsilon’$ ) and distorting loss tangent ( $\tan\delta$ ) readings.

5.1 Electrode Contact Options

Rigid Flat Electrodes (e.g., ARDA): Best suited for rigid, flat, parallel samples. ARDA (Ambient Rigid Dielectric Apparatus) utilizes precision surfaces flat to within $< 10\text{ }\mu\text{m}$ with an integrated spring-loaded guard ring.
Conductive Painted Electrodes: Apply thin silver conductive paint to rough, brittle, or flexible samples. The conductive coating conforms to surface contours, eliminating series air gaps. Ideal for Eynocs HZa, HZp, and HZv sample-cell fixtures.
Spin-Coated Electrodes: Best for thin films, organic layers, and coatings requiring a uniform electrode thickness. Spin coating offers repeatable layer deposition without mechanically deforming delicate samples.

5.2 Electrode Selection Guide

Sample Type & Surface	Recommended Method	Primary Advantage
Flat, Rigid Parallel Disks	Precision Flat Electrodes	Maximum dimensional accuracy; non-destructive; easy
Rough, Curved, or Rigid Surfaces	Conductive Silver Paint	Eliminates micro-air gaps; conforms to surface
Thin Films, Foils, & Polymer Coatings	Spin-Coated Conductive Layer	Highly uniform thickness; repeatable preparation

Note on Sample Thickness Uniformity: While conductive paints and spin-coated layers resolve contact air gaps, they do not correct variations in sample thickness across the contact area. Thickness variations create non-uniform electric field distributions, requiring multiple thickness readings to compute an accurate average thickness ( $d_{\text{avg}}$ ).

5.3 Mandatory Electrode Cleaning Routine

Contamination, skin oils, or residual silver paint create parasitic impedance pathways and degrade measurement accuracy. Execute this cleaning routine prior to every measurement series:

Inspect: Examine electrode surfaces under clear light for dust, film, or physical residue.
Apply Solvent: Moisten a clean, lint-free laboratory wipe with 99.9% Isopropanol (IPA). Never pour solvent directly onto sample cell fixtures or insulators.
Wipe Clean: Gently wipe electrode surfaces until all visible residues are removed.
Evaporate & Dry: Allow the IPA to evaporate completely.
Protect Interface: Do not touch cleaned metallic surfaces with bare hands. Reassemble the cell fixture and rerun Open calibration if electrode geometry was altered during cleaning.

This information, together with additional practical recommendations and measurement considerations, is covered in the complete guide for optimal measurement conditions with Eynocs Analyzers
