Omega Modular Dielectric Impedance Analyzer
Omega is a Dielectric Impedance Analyzer for measuring from dielectric impedance down to conductivity measurements. It can be integrated with various interface options to provide highest accuracy and very wide impedance and frequency range.
Broad Impedance and Frequency ranges
This cutting-edge Analyzer offers exceptional capabilities for measuring dielectric properties, electrochemical behaviour, impedance and conductivity across various frequencies. Omega represents our most advanced and versatile instrument. It is designed with modularity in mind, centred around the Omega Main unit which can be seamlessly paired with one specialized test interface, each optimized for specific functionality. Notably, our impedance measurement interfaces provide outstanding general-purpose performance, ensuring the utmost accuracy and an incredibly wide range of impedance and frequency measurements.
Omega impressively spans an 18-order magnitude impedance range (1 mΩ ~ 500 TΩ), covers a 14-order magnitude frequency range (1 µHz ~ 100 MHz), and maintains a basic phase accuracy of 0.001°. This enables Omega to do measurement of permittivity, conductivity, and impedance across a vast array of materials or components, even those with unique characteristics, without the need to alter sample geometry/cell.
Omega can be integrated with our Temperature control systems for an automatic precisely temperature controlled measurements over a broad temperature range. It stands out as a user-friendly and unique instrument, delivering overall exceptional performance. It adeptly caters to a wide range of specialized requirements.
Omega can be currently integrated with:
HZx/HZa Interface: Which allows for 2, 3 or 4 wire measurements, or with the HZa which is a Sample cell integrated Interface. HZx or HZa can support measurements with a combined output Signal of applied DC Bias and AC signal up to ±50V*¹.
HV500 Interface: Which allows for 2 wire measurements and support measurements with a combined output Signal of applied DC Bias and AC signal up to ±250V.
HV1000 Interface: Which allows for 2 wire measurements and support measurements with a combined output Signal of applied DC Bias and AC signal up to ±500V.
HV2000 Interface: Which allows for 2 wire measurements and support measurements with a combined output Signal of applied DC Bias and AC signal up to ±1000V.
Other interfaces are in development as well.
Omega Modular Dielectric Impedance Analyzer
Omega can be controlled via a PC-based measurement control (UniLab), has several connection options through GPIB, High Speed USB, Ethernet or RS-485 and has Interfaces Instructions and libraries for full instrument control from Java, C etc.
It has different Options which should cater to most users according to their various Budgets:
| Options | Features |
|---|---|
| Base Device | Frequency limit from 1mHz to 1 MHz, DC-Bias, Normal Limitations, High Precision and Ethernet connection |
| FR-EX1 | Extends frequency limit from 1 µHz to 10 MHZ |
| FR-EX2 | Extends frequency limit from 1 µHz to 50 MHZ |
| FR-EX3 | Extends frequency limit from 1 µHz to 100 MHZ |
| Enhanced Limitations | Adds Waveforms with variable sampling time, Higher harmonics and Non-linear Measurements Functionality |
| High speed | Frequency Measurements up to 650Pts/sec, Waveforms Measurements up to 10MPts |
| GPIB | Adds GPIB Connection in addition to the existing Ethernet Connection |
| USB | Adds USB Connection in addition to the existing Ethernet Connection |
| RS485 | Adds RS485 Connection in addition to the existing Ethernet Connection |
Omega + HZx/HZa interface key facts
Desktop/Rack single channel impedance analyzer + Interface or Sample Cell
2, 3 and 4 software selectable electrode configurations (using 1 m BNC cable
between Analyzer and Interface and 25 cm cable connection between HZx
and Sample up to 100 MHz) for HZx or HZa interface variants.
In it’s highest configurations:
– Frequency range: 1 µHz – 100 MHz
– Impedance range: 1 mΩ – 500 TΩ
– Capacitance range: 1 fF – 100 F
– Inductance range: 10 nH – 1 kH
– Base Precision ≤ 0.01 %
– Lowest measurable phase angle: 0.001°
– Voltage up to ±50 V*¹ (full AC + DC Bias range) in 2 Wire Mode, Up to 5 Vrms AC and ±50 Vdc (AC Coupled) with its full range in 3, 4 Wire Mode
– Current up to 25 mA
– Configurable frequency and time-domain mode waveforms.
– Non linear, Higher Harmonics and High speed measurements supported.

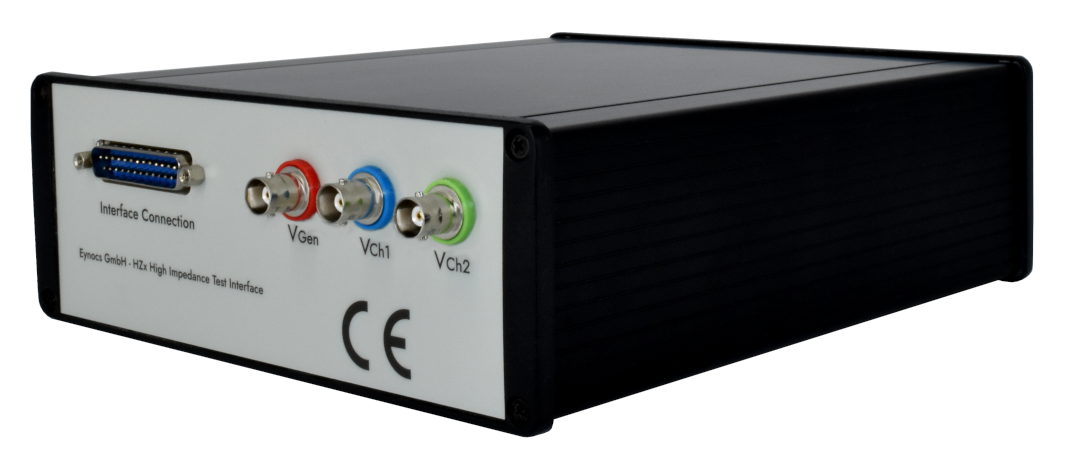

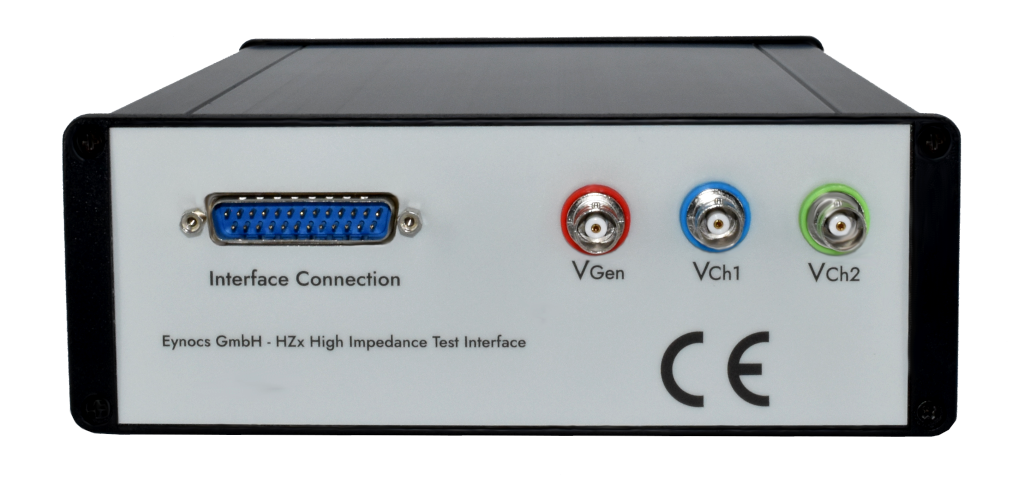

HZx 2, 3 or 4 Wire Dielectric High Impedance Test Interface
Omega + HV500 interface
Desktop/Rack single channel impedance analyzer + Interface with 2 electrodes/wires configuration (using 1 m BNC cable
between Analyzer and Interface and up to 50 cm (SHV) cable connection between Interface
and Sample up to 10 MHz).
In it’s highest configurations:
– Frequency range: 1 µHz – 10 MHz
– Impedance range: 1 Ω – 500 TΩ
– Capacitance range: 1 fF – 100 F
– Inductance range: 10 nH – 1 kH
– Base Precision ≤ 0.01 %
– Lowest measurable phase angle: 0.001°
– Voltage up to ±250 V(full AC + DC Bias range)
– Current up to 25 mA
– Configurable frequency and time-domain mode waveforms.
– Non linear, Higher Harmonics and High speed measurements supported.
HV500 High Voltage Dielectric Impedance Test Interface
It is important to keep in mind the limitation of 25 mA maximum output signal current which would equate to an overall smaller output signal by short or 100 Ω sample and with an amplitude of 500 Vpp it would pose a real safety hazard when not handled properly.
Omega + HV1000 interface
Desktop/Rack single channel impedance analyzer + Interface with 2 electrodes/wires configuration (using 1 m BNC cable
between Analyzer and Interface and up to 50 cm (SHV) cable connection between Interface
and Sample up to 10 MHz).
In it’s highest configurations:
– Frequency range: 1 µHz – 10 MHz
– Impedance range: 1 Ω – 500 TΩ
– Capacitance range: 1 fF – 100 F
– Inductance range: 10 nH – 1 kH
– Base Precision ≤ 0.01 %
– Lowest measurable phase angle: 0.001°
– Voltage up to ±500 V(full AC + DC Bias range)
– Current up to 10 mA
– Configurable frequency and time-domain mode waveforms.
– Non linear, Higher Harmonics and High speed measurements supported.
HV1000 High Voltage Dielectric Impedance Test Interface
It is important to keep in mind the limitation of 10 mA maximum output signal current which would equate to an overall smaller output signal by short or 100 Ω sample and with an amplitude of 1000 Vpp it would pose a real safety hazard when not handled properly.
Omega + HV2000 interface
Desktop/Rack single channel impedance analyzer + Interface with 2 electrodes/wires configuration (using 1 m BNC cable
between Analyzer and Interface and up to 50 cm (SHV) cable connection between Interface
and Sample up to 10 MHz).
In it’s highest configurations:
– Frequency range: 1 µHz – 10 MHz
– Impedance range: 1 Ω – 500 TΩ
– Capacitance range: 1 fF – 100 F
– Inductance range: 10 nH – 1 kH
– Base Precision ≤ 0.01 %
– Lowest measurable phase angle: 0.001°
Voltage up to ±1000 V(full AC + DC Bias range)
– Current up to 10 mA
– Configurable frequency and time-domain mode waveforms.
– Non linear, Higher Harmonics and High speed measurements supported.
HV2000 High Voltage Dielectric Impedance Test Interface
It is important to keep in mind the limitation of 10 mA maximum output signal current which would equate to an overall smaller output signal by short or 100 Ω sample and with an amplitude of 2000 Vpp it would pose a real safety hazard when not handled properly.
